Product name

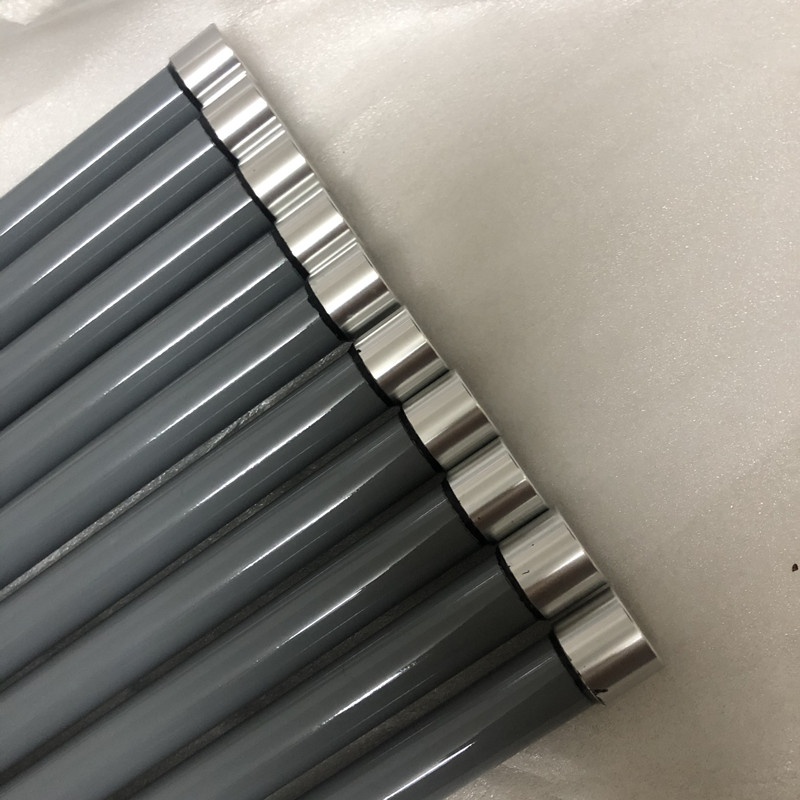

868-915MHz omnidirectional fiberglass antenna

Product description

Fiberglass antenna designed and developed for wireless access system. The antenna has been optimized and carefully debugged, with good standing wave performance, high gain, and wide frequency band; it has a solid structure, and has good anti-vibration shock and waterproof and anti-corrosion capabilities; it is small in size and easy to install, whether it is installed on a tower or a building. Its performance is not affected at the top.

Electric Specification

Model No.

ATL-BL-8691

Frequency range-MHz

868-915

Gain-dBi

12

Horizontal Beam width-°

360

Vertical Beam width -°

6

VSWR

≤1.5

Input Impedance -Ω

50

Polarization

Vertical

Maximum input power -W

100

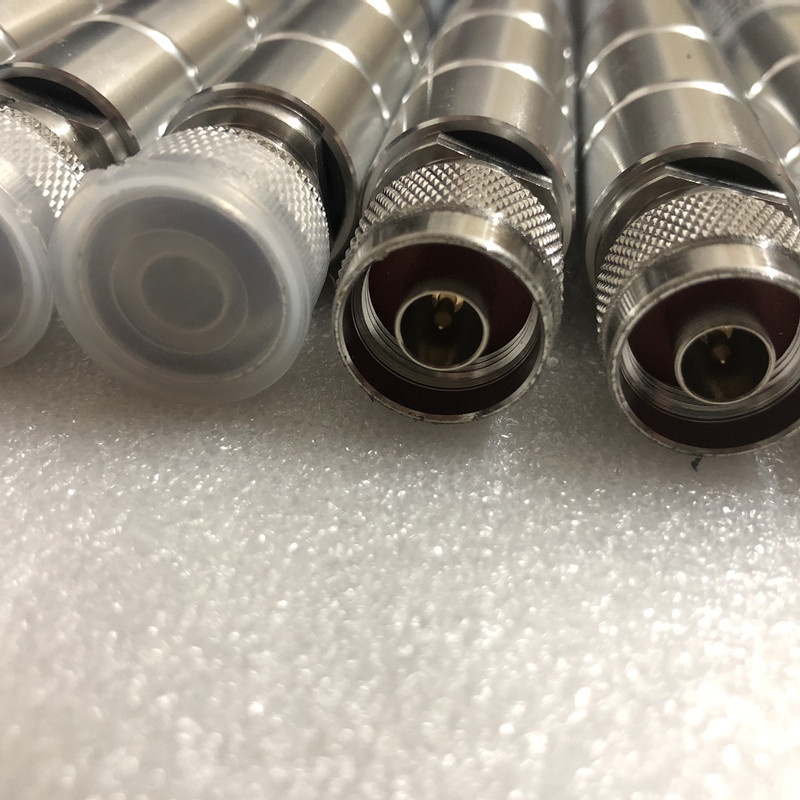

Connector

N-Female

Mechanical Specification

Dimensions -mm

Φ20X1500

Weight -Kg

1.2
