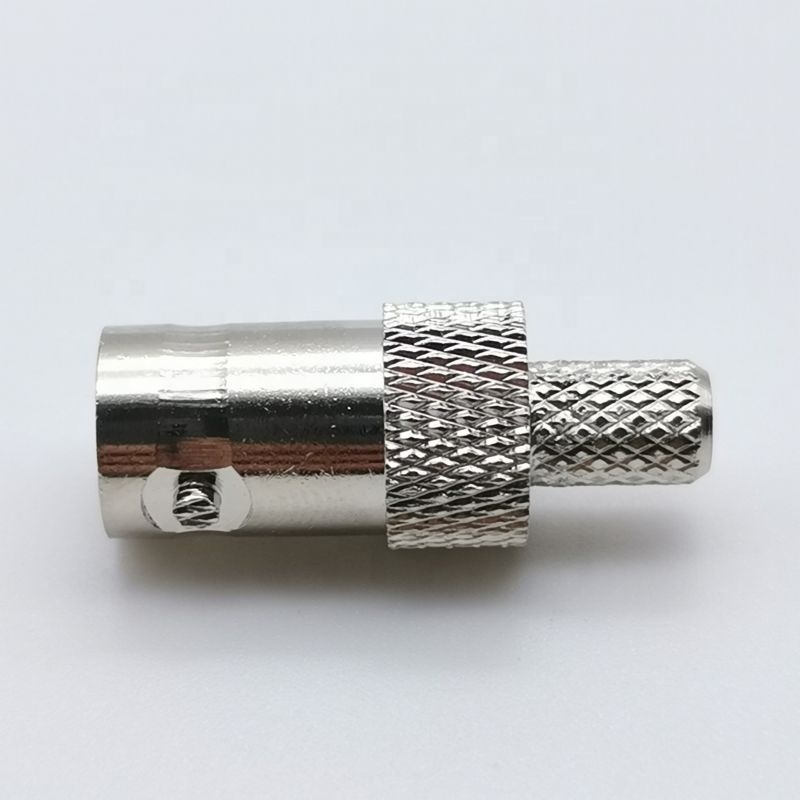

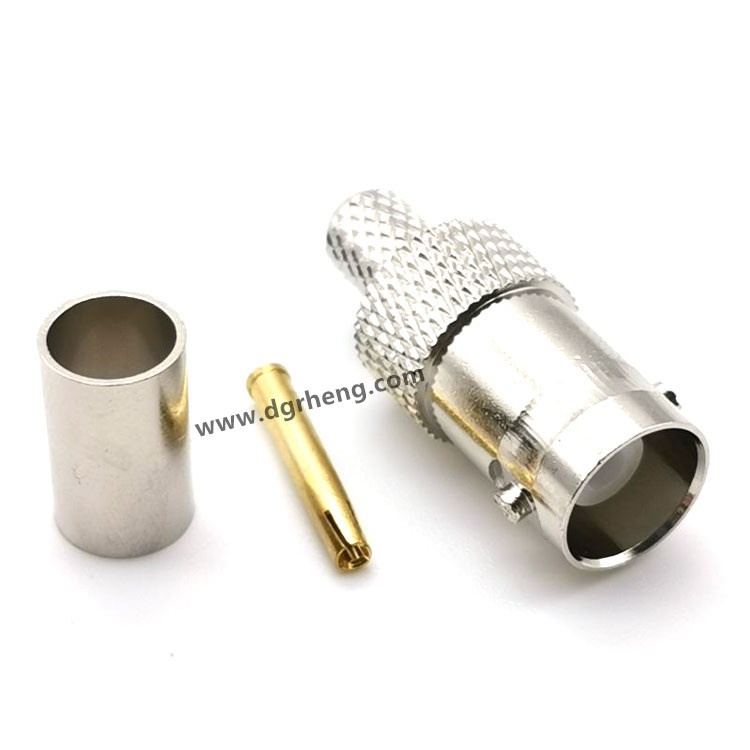

  • Brass BNC Female Crimp Plug Male Connector for RF Coaxial RG6 RG 59 RG58
  • Brass BNC Female Crimp Plug Male Connector for RF Coaxial RG6 RG 59 RG58
Brass BNC Female Crimp Plug Male Connector for RF Coaxial RG6 RG 59 RG58 Brass BNC Female Crimp Plug Male Connector for RF Coaxial RG6 RG 59 RG58

Brass BNC Female Crimp Plug Male Connector for RF Coaxial RG6 RG 59 RG58



Crimp on Male CCTV BNC Connector for Coaxial Cable (RH06)

Features:
1. BNC Female Crimp Plug
2. Two-step ferrule with strain relief crimp
Materials:
Body Zinc Alloy, Nickel Plated
Ring

Copper, Nickel Plated
Center Pin Copper, Gold Plated

Specifications:
Temperature Range - 40~ +155 degrees
Insulation Resistance ≥5000MΩ
Character Impedance BNC-50Ω
Frequency Range 0~4GHz(DC - 4GHz)
Disengage Force ≥0.6N
Contact Resistance Center Conductor≤1.5mΩ; Outer Conductor≤1mΩ
Net Weight 6g/piece

Previous Product：Brass 75 Ohm BNC male Plug to F Type female Jack Adapter Straight Connector Adapter for CCTV cameras Next Product：Nickle Plated RF Coaxial RG6 RG59 RG58 BNC Crimp Plug Male Connector for CCTV
