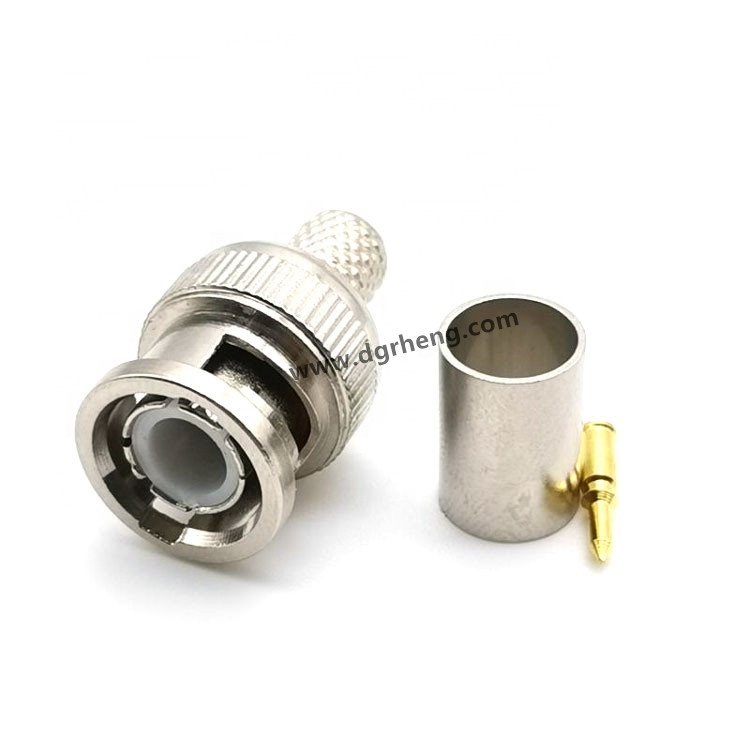

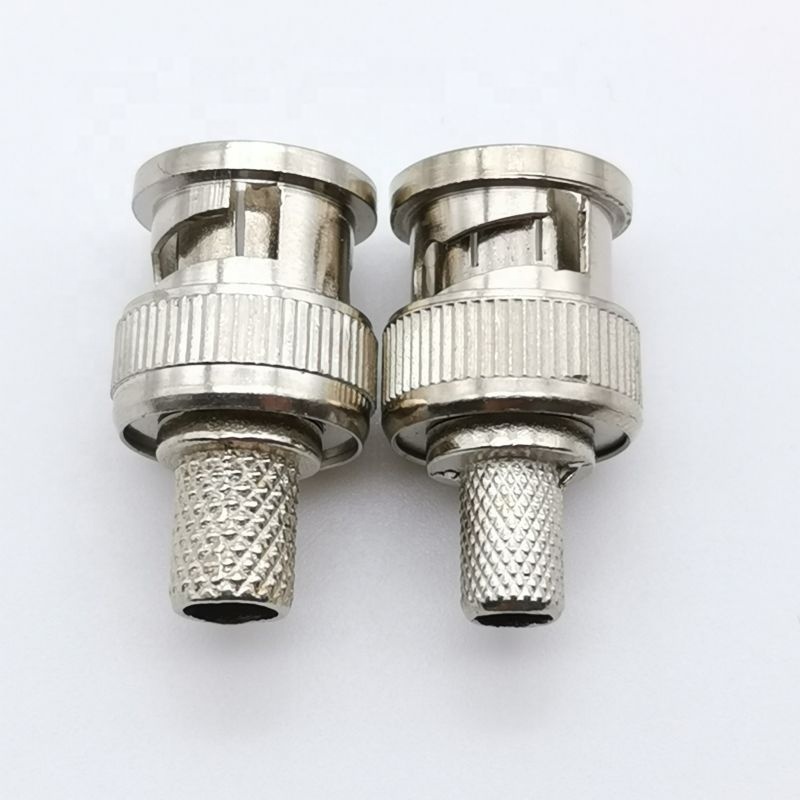

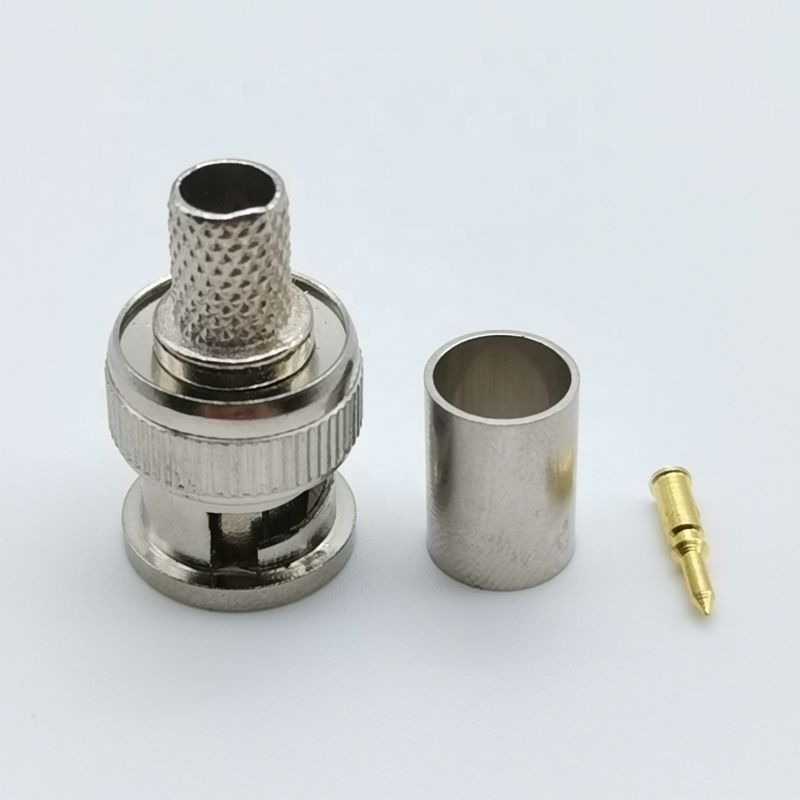

Nickle Plated RF Coaxial RG6 RG59 RG58 BNC Crimp Plug Male Connector for CCTV



Crimp on Male CCTV BNC Connector for Coaxial Cable (RH05)

Features:
1. BNC Connector: BNC Male Crimp on Connector
2. Two-step ferrule with strain relief crimp
Materials:
Body Zinc Alloy, Nickel Plated
Ring

Copper, Nickel Plated
Center Pin Copper, Gold Plated

Specifications:
Temperature Range - 40~ +155 degrees
Insulation Resistance ≥5000MΩ
Character Impedance BNC-50Ω
Frequency Range 0~4GHz(DC - 4GHz)
Disengage Force ≥0.6N
Contact Resistance Center Conductor≤1.5mΩ; Outer Conductor≤1mΩ
Net Weight 6g/piece

Previous Product：Brass BNC Female Crimp Plug Male Connector for RF Coaxial RG6 RG 59 RG58
